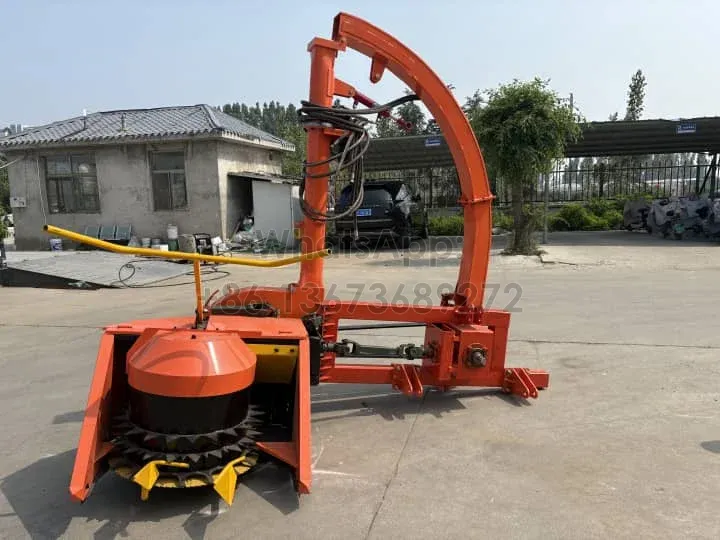

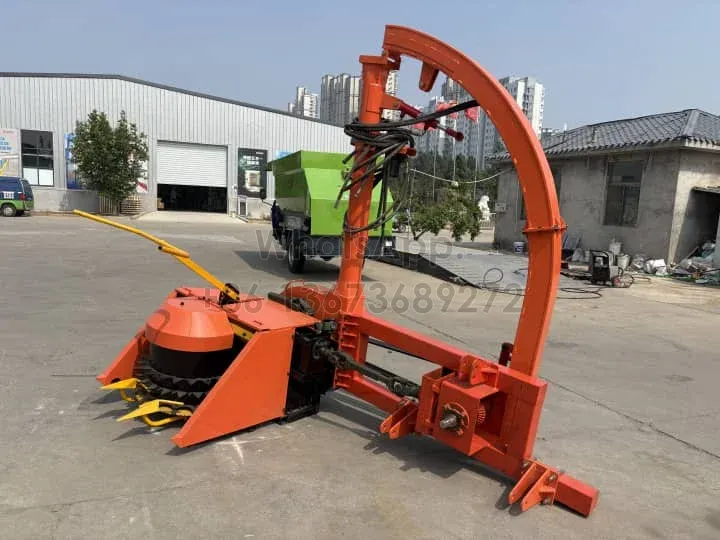

Corn silage harvesting machine for straw, grass cutting

Taizy Colheitadeira de silagem integrates crushing dry or wet silage, straw, stalk, grass, etc. into small pieces with rotary blades and recycling them. It’s able to crush the straw into small pieces less than 80mm, which can directly be used for silage feed.

This corn forage harvester works with a tractor(≥45HP). It has harvesting widths of 1.0m, 1.3m, 1.5m, 1.65m, 1.8m, and 2.0m, with a recycling rate of ≥80%. The stubble height is less than 80mm. Its capacity ranges from 0.25-0.72 hectares/h. If you have any doubts, please contact us immediately, and we’ll reply very soon!

Advantages of corn silage harvester machine

• This corn forage harvester can harvest, cut, smash and throw straw and stalks, which is multifunctional.
• Taizy has different silage harvesters for sale, like 1.0m, 1.3m, 1.5m, 1.65m, etc.
• The straw crushing and recycling machine has a working speed of 2-4 km/h and a capacity of 0.25-0.72 hectares/h, que é altamente eficiente.
• O stubble height is 8-15cm, adjustable.
• We provide customization services, such as big wheels, secondary crushing, with or without a basket, etc.

Parâmetros técnicos da máquina colhedora de forragem

Based on the harvesting width, we classify this hay silage harvester machine, as 1.0m, 1.3m, 1.5m, 1.65m, 1.8m, and 2.0m. It uses the tractor to work. The below is detailed information, and you can know the matched tractor power, size, weight, capacity, etc.

Largura de colheita	1m	1,3m	1,5m	1,65 m	1,8m	2,0 m
Motor (sem cesto)	Trator ≥45HP	Trator ≥45HP	Trator ≥50HP	Trator ≥55HP	Trator ≥60HP	Trator ≥70HP
Motor (com cesto)	Trator ≥60HP	Trator ≥70HP	Trator ≥75HP	Trator ≥90HP	Trator ≥100HP	Trator ≥110HP
Dimensão	1,4*1,2*2,6m	1,5*1,8*3,35m	1,5*2,0*3,5m	1,5*2,2*3,5m	1,5*2,3*3,5m	1,7*2,5*3,5m
Peso	680kg	700kg	720kg	790kg	820kg	850kg
Taxa de reciclagem	≥80%	≥80%	≥80%	≥80%	≥80%	≥80%
Distância de arremesso	3-5m	3-5m	3-5m	3-5m	3-5m	3-5m
Altura do arremesso	≥2m	≥2m	≥2m	≥2m	≥2m	≥2m
Comprimento da palha triturada	Menos de 80mm	Menos de 80mm	Menos de 80mm	Menos de 80mm	Menos de 80mm	Menos de 80mm
Lâmina rotativa	28	32	40	44	48	52
Velocidade do eixo do cortador	2160 r/min	2160 r/min	2160 r/min	2160 r/min	2160 r/min	2160 r/min
Velocidade de trabalho	2-4km/h	2-4km/h	2-4km/h	2-4km/h	2-4km/h	2-4km/h
Capacidade	0,25-0,48 hectares/h	0,25-0,48 hectares/h	0,3-0,5 hectares/h	0,32-0,55 hectares/h	0,36-0,6 hectares/h	0,36-0,72 hectares/h

Applications of tractor-mounted mini silage harvester

This chaff harvester machine can chop and collect various stalks, such as corn stalks, cotton stalks, straws, banana stalks, sorghum stalks, grain stalks, grass, etc. The final product can be used to feed animal and add nutrition of soil etc.

After chopping and collecting crushed straws by the silage recycling machine, here’s where it can be used:

• Livestock farm
• Feed factory
• Biomass fuel for power generation
• Mushroom compost

If you’re interested in this grass harvester and recycling machine, welcome to contact us and we’ll provide more details for your reference.

Estrutura da máquina colhedora de silagem

De modo geral, consiste em câmara de britagem, dispositivo hidráulico de descarga automática, coleta de palha triturada, trator.

• Crushing chamber: a place for crushing the straws.
• Hydraulic automatic unload device: automatically unload, saving labor and time.
• Crushed straw collection: collect crushed straw, improving the work efficiency.
• Tractor: supply the driven power, connecting by PTO.

How does the silage harvester machine work?

Our corn stalk harvester utilizes the power output from the tractor’s power output shaft and transfers the power to the machine through the universal joint. The machine utilizes the gear speed change and triangle belt transmission to drive the shaft to rotate at high speed and cut off the straw. Please refer to the following video for details.

Peças personalizáveis ​​da colhedora de silagem de milho

As a professional silage equipment manufacturer, we can customize solutions to meet the needs of our customers. For the silage harvesting and recycling machine, the customizable parts are as follows:

Peças de desgaste da colhedora de silagem de milho para venda

In Taizy, this pull-type forage harvester uses rotary blades to crush the straw. It can be used for 2 years. When using, attention to the field situation. And after 2-year usage, the rotary blades should be replaced.

Another two types of forage harvester machines available

Self-propelled forage harvester

This straw crusher adopts a unique “backward walking” design, moving backward during operation, which can adapt to the field terrain more flexibly, especially suitable for small plots or complex terrain. The blade system is optimized to efficiently crush the straw and evenly throw it into the field or collection bin, which is convenient for subsequent return to the field or recycling.

Corn silage harvester without basket

The binless grass harvester and recycling machine is designed to be thrown directly or transported externally, eliminating the need for a traditional bin structure and making the machine lighter and less costly. Its highly efficient crushing system can process stalks quickly and evenly distribute the crushed straw to the field through the spraying device, or directly transport it to the designated place through the external equipment.

Preoccupation of silage harvester

1. Check and tighten the fasteners at the connections.
2. Remember to remove the clay so as not to overload the machine work.
3. Lack of oil in the bearing gap will cause high temperature, it should be added in time.
4. Open the fan cover and check whether the screws on the hub of the fan wheel are loose.

FAQ of maize silage harvester

Feedback of Taizy silage harvester from worldwide customers

After using our maize forage harvester, the customer praised the machine and sent us feedback videos.

Feedback about 1.3 silage harvesting machine from Malaysian customer

Feeback on 1.5m silage harvester from Cambodian customer

Contacte-nos para mais detalhes!

As a silage machinery manufacturer and supplier, we also have enfardadeira de silagem, forage chopper machine, hay round baler, and other equipment for sale.

No matter what type you need, contact us and we will recommend the most suitable equipment to help your silagem negócio de acordo com suas necessidades.
